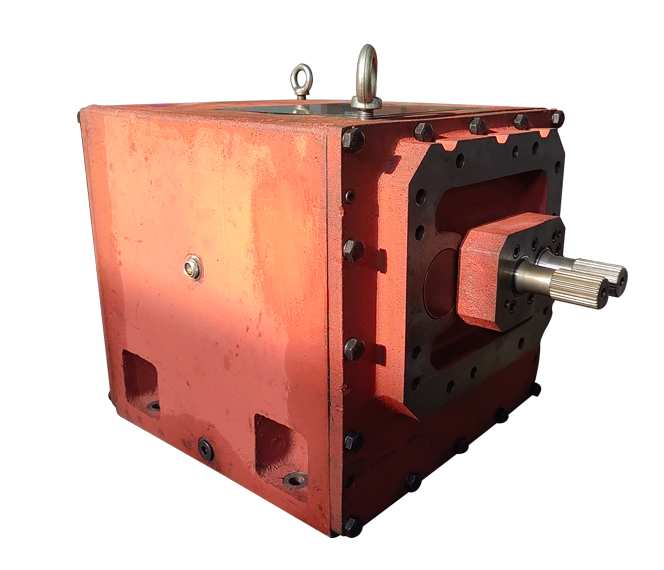

YFPS flat twin gear box series
Product advantages
- This series of products with novel and beautiful appearance, compact structure, low noise index, strong bearing capacity, high transmission efficiency, almost no leakage oil.
- The design life of the main parts is more than 100,000 hours;
- The all-weather monitoring system can be configured according to customer requirements to monitor the running status of the gear box in real time.
Box
Box structure adopts an integrated structure, taking into account the function of noise absorption, the material is made of high-quality cast iron, and is fully aged, the application of advanced numerical control processing technology, so as to ensure the high precision and accuracy of the box can be maintained, so as to ensure that the box life can reach more than 100,000 hours.
Gear
Multi-objective optimization design of gear geometric parameters, the maximum width to diameter ratio of 1.6, and supplemented by accurate topological micro-modification technology, full tooth width contact at full load, improve material utilization, thus achieving low noise and high efficiency;
Gear material in line with European standards of high-quality low-carbon alloy steel 20CrMnTI, 20CrMnMO, etc., after carburizing and quenching tooth surface hardness of HRC58-62, after precision grinding, grinding precision can reach more than 6 (GB/T10095-2001), while the tooth profile and helix modification, To ensure the perfect meshing of the gear under load, so as to achieve low noise and high efficiency.
Bearing
The bearings of famous brands at home and abroad are preferred and the stability of suppliers is emphasized, so that the whole bearing life is more than 100,000 hours. Commonly used are TMB, DYZV, HRB, FAG, NSK and so on
Lubrication
Advanced synthetic lubricating oil can be selected as a lubrication guarantee, which eliminates the trouble of replacing lubricating oil and saves resources to ensure that the design life of gears and bearings is achieved.
